Brand：NTH
High rotary speed, light weight, air connection rotary cylinder, Compressed air can be fed from the cylinder back parts.
During air feeding, please use oil lubricator.
The safety check valve and pressure relief valve are built in the cylinder.
It can work with inductive proximity switch.It can work with inductive proximity switch for stroke control.It can work with inductive proximity switch, the switch is excluded in accessories and need buying individually, It’s applied to check if the cylinder stroke is required or not.
It can be mounted from front or back.
The drain port should be independently connected to oil tank to avoid back pressure.
Size unit: mm
|
Spec/Model
|
Piston area cm2
Extend
|
Piston area cm2
Retract
|
Piston stroke
mm
|
Max RPM
|
|
SLAN-E110
|
91.2
|
87.9
|
20
|
6000
|
|
SLAN-E120
|
109.3
|
106
|
21
|
6000
|
|
SLAN-E130
|
128.9
|
123.1
|
30
|
6000
|
|
Spec/Model
|
Max.Operating Pressure
Mpa(kgf/cm2)
|
Air connection
Max. pressure
Mpa(kgf/cm2)
|
Inertia monment
kg*m2
|
Weight
kg
|
|
SLAN-E110
|
4.0(40)
|
0.8(8)
|
0.02
|
6.9
|
|
SLAN-E120
|
4.0(40)
|
0.8(8)
|
0.02
|
8.8
|
|
SLAN-E130
|
4.0(40)
|
0.8(8)
|
0.03
|
9.1
|
|

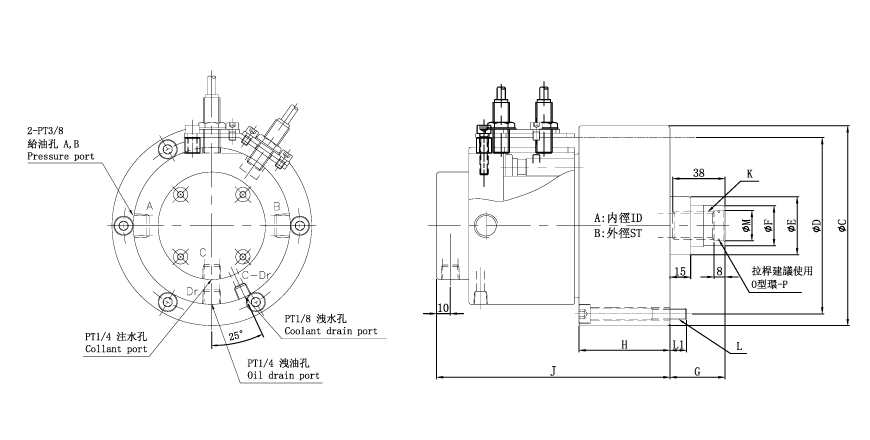

Spec/Model
|
A
|
B
|
C h7
|
D
|
E
|
F
|
G Max
|
G Min
|
H
|
J
|
K
|
L
|
L1
|
M H8
|
N
|
P
|
|
SLAN-E110
|
110
|
20
|
145
|
128
|
42
|
29
|
60
|
40
|
66
|
146
|
M20×2.5
|
6~M8×70
|
12
|
22
|
38
|
S20
|
|
SLAN-E120
|
120
|
21
|
168
|
145
|
42
|
29
|
60
|
39
|
69.5
|
148
|
M20×2.5
|
6~M10×75
|
17
|
22
|
38
|
S20
|
|
SLAN-E130
|
130
|
30
|
168
|
150
|
50
|
33
|
60
|
30
|
79.5
|
158
|
M24×3.0
|
6~M10×85
|
17
|
27
|
43
|
S24
|
Subject to technology changes without prior information
Non-standard requirements can be made
