品牌：OMATEI

選型指導：
1，所用卡盤的品牌及型號
2，工件尺寸及需要夾持的高度
產品優勢：
1，標準軟爪材質為優質45#鋼，強度好，可硬化。
2，精密齒距緊密貼合卡盤基爪，降低磨損。
3，可用于NTH及所有其他品牌相關型號的卡盤。
4，客制化非標卡爪可設計、定做、OEM代工。

Brand:OMATEI

Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.

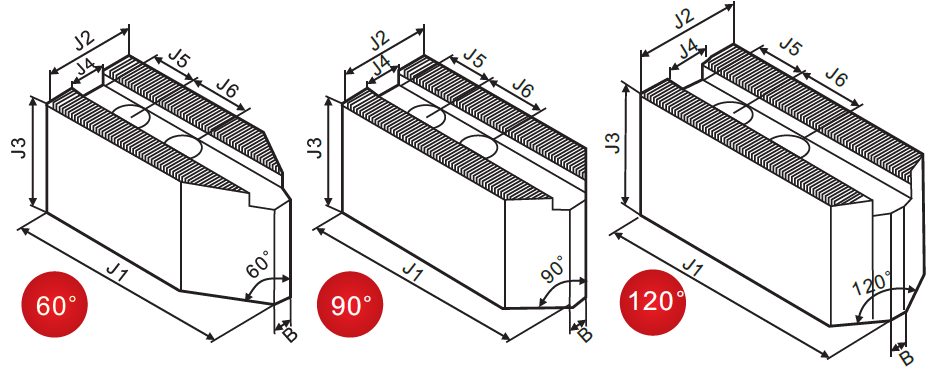

齒距：1.5mm×60° Serration Pitch:1.5×60°? ?單位/UNIT:mm

注：尖角油壓軟爪有60°、90°、120°、可供選擇；非標可定做。

Option for pointed soft jaws:60/90/120 angle degree or other special requirements;Customized spec can be made.

保留技術更改的權利：Subject to technical changes
