High quality steel body with carburize, The surface hardness is
HRC58-60.
The Parallelism and squareness accuracy is
0.005mm per 100mm.
It can be widely used for CNC machines and
other precision machine tools.

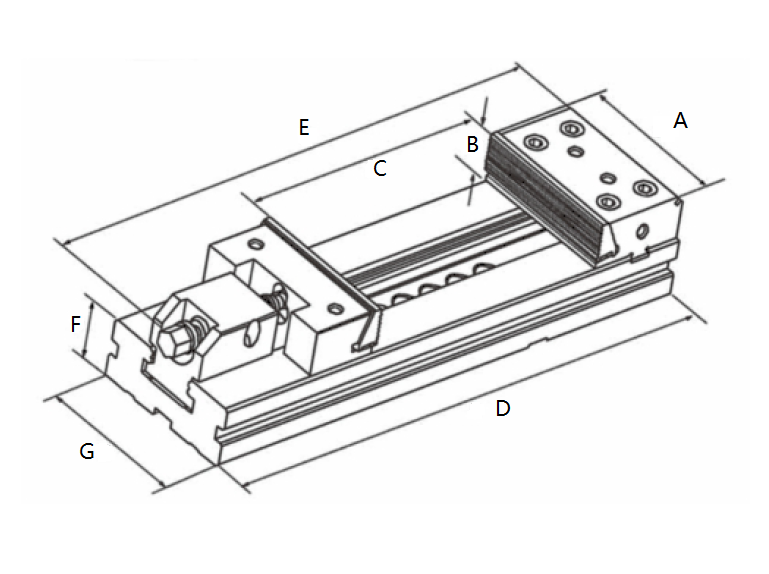

?unit: mm
|
Model /Spec
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
Weight
Kgs
|
Clamp Force
KN
|
|
PV100-1
|
100
|
30
|
100
|
270
|
320
|
35
|
75
|
7
|
16
|
|
PV125-1
|
125
|
40
|
150
|
345
|
402
|
40
|
95
|
13
|
25
|
|
PV150A-1
|
150
|
50
|
200
|
420
|
500
|
50
|
125
|
26
|
30
|
|
PV150B-1
|
150
|
50
|
300
|
520
|
600
|
50
|
125
|
29
|
30
|
|
PV175A-1
|
175
|
60
|
200
|
455
|
530
|
58
|
145
|
37
|
30
|
|
PV175B-1
|
175
|
60
|
300
|
555
|
630
|
58
|
145
|
42
|
30
|
|
PV175C-1
|
175
|
60
|
400
|
655
|
730
|
58
|
145
|
47
|
30
|
|
PV175D-1
|
175
|
60
|
500
|
755
|
830
|
58
|
145
|
52
|
30
|
|
PV200A-1
|
200
|
65
|
200
|
495
|
580
|
70
|
170
|
64
|
40
|
|
PV200B-1
|
200
|
65
|
300
|
595
|
680
|
70
|
170
|
69
|
40
|
|
PV200C-1
|
200
|
65
|
400
|
695
|
780
|
70
|
170
|
74
|
40
|
|
PV200D-1
|
200
|
65
|
500
|
795
|
880
|
70
|
170
|
79
|
40
|
|
PV200E-1
|
200
|
65
|
600
|
895
|
980
|
70
|
170
|
84
|
40
|
|
PV300A-1
|
300
|
80
|
200
|
535
|
630
|
78
|
195
|
95
|
40
|
|
PV300B-1
|
300
|
80
|
300
|
635
|
730
|
78
|
195
|
105
|
40
|
|
PV300C-1
|
300
|
80
|
400
|
735
|
830
|
78
|
195
|
115
|
40
|
|
PV300D-1
|
300
|
80
|
500
|
835
|
930
|
78
|
195
|
125
|
40
|
|
PV300E-1
|
300
|
80
|
600
|
935
|
1030
|
78
|
195
|
135
|
40
|
|
PV300F-1
|
300
|
80
|
700
|
1035
|
1130
|
78
|
195
|
145
|
40
|
|
PV300G-1
|
300
|
80
|
800
|
1135
|
1230
|
78
|
195
|
155
|
40
|
?Subject to technology changes without prior information
Non-standard requirements can be made
