High Capacity High Flexibility
One way clamping
Material 100% tool steel
Heat treated HRC 55° & ground
Clamping force:
SVF-50 : 1000 kgf
SVF-72 : 2000 kgf
SVF-100 : 3000 kgf
|
MODEL NO.
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
I
|
J
|
K
|
L
|
M
|
N
|
O
|
P
|
Q
|
R
|
kg
|
|
SVF-A-5030-80*
|
300
|
50
|
30
|
80
|
60.6
|
35
|
14
|
75
|
24.8
|
50
|
10
|
12
|
12.5
|
70
|
0.50
|
160
|
1.5
|
12
|
6.5
|
|
SVF-A-5030-100*
|
300
|
50
|
50
|
100
|
60.6
|
35
|
14
|
75
|
24.8
|
50
|
10
|
12
|
12.5
|
100
|
0.50
|
100
|
1.5
|
12
|
6.5
|
|
SVF-A-5040-80
|
400
|
50
|
40
|
80
|
60.6
|
35
|
14
|
75
|
24.8
|
50
|
10
|
12
|
12.5
|
80
|
0.50
|
240
|
1.5
|
12
|
8.5
|
|
SVF-A-5040-100
|
400
|
50
|
50
|
100
|
60.6
|
35
|
14
|
75
|
24.8
|
50
|
10
|
12
|
12.5
|
100
|
0.50
|
200
|
1.5
|
12
|
8.5
|
|
SVF-A-5050-80
|
500
|
50
|
50
|
80
|
60.6
|
35
|
14
|
75
|
24.8
|
50
|
10
|
12
|
12.5
|
90
|
0.50
|
320
|
1.5
|
12
|
10.0
|
|
SVF-A-5050-100
|
500
|
50
|
50
|
100
|
60.6
|
35
|
14
|
75
|
24.8
|
50
|
10
|
12
|
12.5
|
100
|
0.50
|
300
|
1.5
|
12
|
10.0
|
|
SVF-A-5060-80
|
600
|
50
|
60
|
80
|
60.6
|
35
|
14
|
75
|
24.8
|
50
|
10
|
12
|
12.5
|
100
|
0.50
|
400
|
1.5
|
12
|
11.5
|
|
SVF-A-5060-100
|
600
|
50
|
50
|
100
|
60.6
|
35
|
14
|
75
|
24.8
|
50
|
10
|
12
|
12.5
|
100
|
0.50
|
400
|
1.5
|
12
|
11.5
|
|
SVF-A-5070-80
|
700
|
50
|
70
|
80
|
60.6
|
35
|
14
|
75
|
24.8
|
50
|
10
|
12
|
12.5
|
110
|
0.50
|
480
|
1.5
|
12
|
13.0
|
|
SVF-A-5070-100
|
700
|
50
|
50
|
100
|
60.6
|
35
|
14
|
75
|
24.8
|
50
|
10
|
12
|
12.5
|
100
|
0.50
|
500
|
1.5
|
12
|
13.0
|
|
SVF-A-7240-100
|
400
|
72
|
50
|
100
|
82.2
|
48
|
18
|
112
|
39.7
|
72
|
14
|
16
|
21.3
|
100
|
0.70
|
200
|
2.0
|
16
|
19.0
|
|
SVF-A-7250-100
|
500
|
72
|
50
|
100
|
82.2
|
48
|
18
|
112
|
39.7
|
72
|
14
|
16
|
21.3
|
100
|
0.70
|
300
|
2.0
|
16
|
24.5
|
|
SVF-A-7260-100
|
600
|
72
|
50
|
100
|
82.2
|
48
|
18
|
112
|
39.7
|
72
|
14
|
16
|
21.3
|
100
|
0.70
|
400
|
2.0
|
16
|
27.0
|
|
SVF-A-7270-100
|
700
|
72
|
50
|
100
|
82.2
|
48
|
18
|
112
|
39.7
|
72
|
14
|
16
|
21.3
|
100
|
0.70
|
500
|
2.0
|
16
|
30.0
|
|
SVF-A-10040-100*
|
400
|
100
|
50
|
100
|
93.2
|
48
|
18
|
115
|
43.1
|
72
|
14
|
16
|
22.2
|
100
|
0.85
|
200
|
2.5
|
16
|
29.0
|
|
SVF-A-10050-100
|
500
|
100
|
50
|
100
|
93.2
|
48
|
18
|
115
|
43.1
|
72
|
14
|
16
|
22.2
|
100
|
0.85
|
300
|
2.5
|
16
|
37.0
|
|
SVF-A-10060-100
|
600
|
100
|
50
|
100
|
93.2
|
48
|
18
|
115
|
43.1
|
72
|
14
|
16
|
22.2
|
100
|
0.85
|
400
|
2.5
|
16
|
41.0
|
|
SVF-A-10070-100
|
700
|
100
|
50
|
100
|
93.2
|
48
|
18
|
115
|
43.1
|
72
|
14
|
16
|
22.2
|
100
|
0.85
|
500
|
2.5
|
16
|
45.0
|
(SVF vises listed above come equipped to clam 1-4 parts, if additional part clamping is required please order optional accessories as listed on parts pages)
[*]these units will only hold up to 1-3 parts.

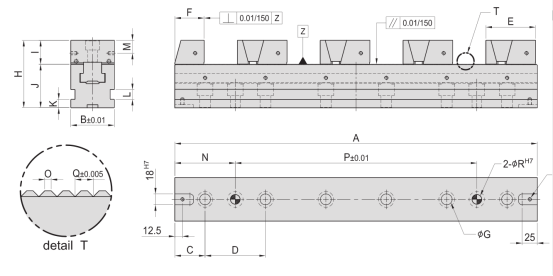

Forcing direction

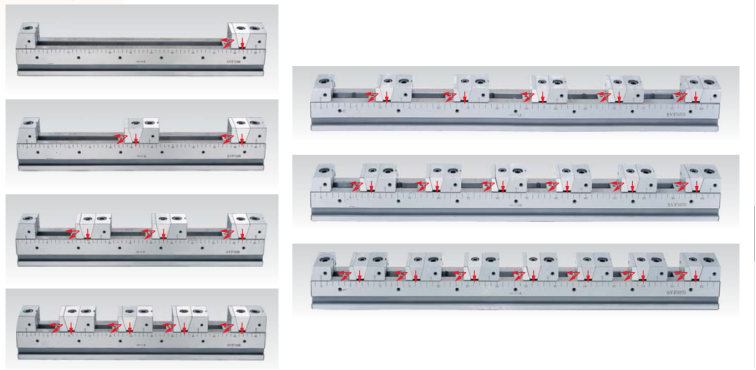

Maximum width of the workpieces which can be clamped
|
MODEL NO.
|
1 PCS
|
2 PCS
|
3 PCS
|
4 PCS
|
|
SVF-A-5030
|
203
|
71
|
27
|
--
|
|
SVF-A-5040
|
303
|
121
|
60
|
30
|
|
SVF-A-5050
|
403
|
171
|
94
|
55
|
|
SVF-A-5060
|
503
|
221
|
127
|
80
|
|
SVF-A-5070
|
603
|
271
|
160
|
105
|
|
SVF-A-7240
|
269
|
93
|
35
|
--
|
|
SVF-A-7250
|
369
|
143
|
68
|
30
|
|
SVF-A-7260
|
469
|
193
|
101
|
55
|
|
SVF-A-7270
|
569
|
243
|
135
|
80
|
|
SVF-A-10040
|
258
|
82
|
24
|
--
|
|
SVF-A-10050
|
358
|
132
|
57
|
19
|
|
SVF-A-10060
|
458
|
182
|
90
|
44
|
|
SVF-A-10070
|
558
|
232
|
124
|
69
|
|
MODEL NO.
|
5 PCS
|
6 PCS
|
7 PCS
|
8 PCS
|
9 PCS
|
|
SVF-A-5030
|
--
|
--
|
--
|
--
|
--
|
|
SVF-A-5040
|
--
|
--
|
--
|
--
|
--
|
|
SVF-A-5050
|
32
|
16
|
20
|
--
|
--
|
|
SVF-A-5060
|
52
|
33
|
34
|
--
|
--
|
|
SVF-A-5070
|
72
|
50
|
--
|
22
|
13
|
|
SVF-A-7240
|
--
|
--
|
--
|
--
|
--
|
|
SVF-A-7250
|
--
|
--
|
--
|
--
|
--
|
|
SVF-A-7260
|
28
|
--
|
--
|
--
|
--
|
|
SVF-A-7270
|
48
|
26
|
--
|
--
|
--
|
|
SVF-A-10040
|
--
|
--
|
--
|
--
|
--
|
|
SVF-A-10050
|
--
|
--
|
--
|
--
|
--
|
|
SVF-A-10060
|
17
|
--
|
--
|
--
|
--
|
|
SVF-A-10070
|
37
|
--
|
--
|
--
|
--
|
