JHL Series products:
Fixed and non-rotating.Glue-injected flexible collet, parallel clamping, with a larger clamping surface and stronger gripping force.
Long service life, powerful function of waterproof and dustproof. Easy control over the concentricity and parallelism at both ends.
Separate size processing over multiple sections to reduce equipment costs.
Replacing CNC multi-section simultaneous processing with single-action grinding machine.Requiring the provision of rear pneumatic/hydraulic cylinder rod drive.
Suitable for non-standard fixtures for CNC milling and drilling machines,can be used as row-type multi-station fixtures.
Suitable for machining of precision workpieces.
|

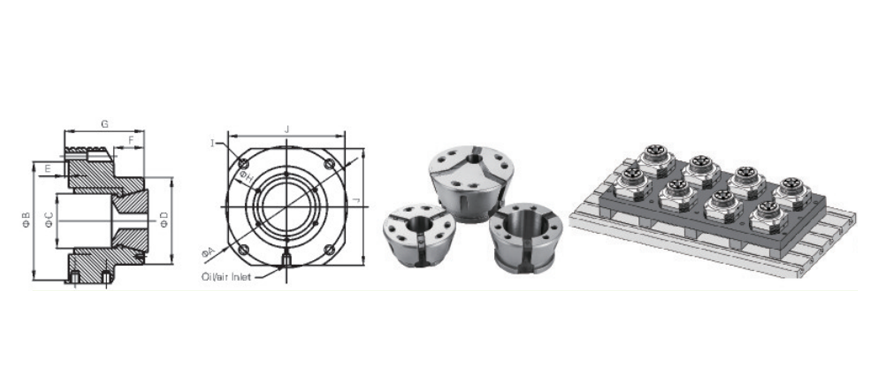

MODEL/SPEC
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
I
|
J
|
|
JHL-42
|
185
|
150
|
45
|
110
|
5
|
38.5
|
100.5
|
164
|
4-M8
|
158
|
|
JHL-52
|
185
|
150
|
55
|
110
|
5
|
38.5
|
100.5
|
164
|
4-M8
|
158
|
|
JHL-65
|
185
|
150
|
65
|
130
|
5
|
38.5
|
100.5
|
164
|
4-M8
|
158
|
|
MODEL/SPEC
|
Working Pressure
|
Collet
|
Collet stroke
|
Drive Mode
|
|
JHL-42
|
20
|
SK-42
|
±0.5
|
Air/Hydraulic
|
|
JHL-52
|
20
|
SK-52
|
±0.5
|
Air/Hydraulic
|
|
JHL-65
|
18
|
SK-65
|
±0.5
|
Air/Hydraulic
|
